Stock No:
Make:
Model:
Year:
Capacity:
Mast Type:
Lift Height:
Comment:
 More Info:
ELECTRIC COUNTERBALANCE TRUCKS
6101
Samuk
HE/4 wheel
NEW
1.5 to 3.0
Any
Any
From £9995.00

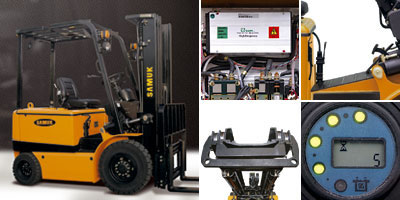

HE series

4-wheel electric compact counterbalance lift trucks:

  • 1.5 - 3.0 tonnes lift capacity
  • 48/80V DC (SEM) electrical control


Compact battery-over-steer-axle 4-wheel layout is highly manoeuvrable achieving a reduced turning radius, using less aisle width. In addition, there is room for one motor and control unit instead of the higher cost 2 motors / 2 controllers used with most 'battery between the axles' designs. The electrical system is DC (SEM).

Super-elastic pneumatic type tyres are suitable for indoor/outdoor use.

A fresh, original design makes full use of simple, reliable, modern technology suitable for 10,000 hours between overhauls.

SEM motors are controlled by state-of-the-art programmable and diagnostic ZAPI DC Mosfet system ensuring smooth operation. Higher compact battery position permits ample footroom and a better view of the load and the road.

Safe access steps either side and automotive style layout are ideal for multi-skill 'on/off' drivers.
