Stock No:
Make:
Model:
Year:
Capacity:
Mast Type:
Lift Height:
Comment:
More Info:
ELECTRIC COUNTERBALANCE TRUCKS
6117
Samuk
HP
NEW
1.6 to 2.2
Power pallet
N/A
From £3995.00


HE series

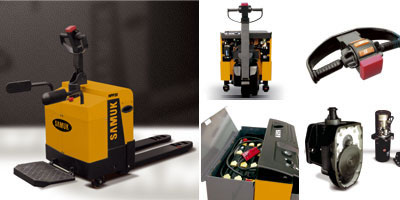

Electric pedestrian / rider pallet transporters:

  • 1.3 - 2.5 tonnes load capacity
  • 24V Curtis DC (SEM) control system


Separately excited motors give AC-like control for easy and safe use on ramps and slopes, with an integral anti-rollback system.

Heavy-duty traction unit with helical cut gears for low noise, high starting torque and lateral stability castors give the operator confidence and safety.

HP series: Designed for pedestrian use and cannot be fitted with a rider platform. A truck weight of less than 300kg makes it ideal for the first move from hand-pallet truck to powered. The HP13 (1.3 tonnes) is purpose-built for lorry loading. Higher capacity HP20 & HP25 (2.0 & 2.5 tonnes) transporters feature an unsprung drive unit for maximum traction on uneven floors and ramps. Programmable controller can be adjusted to suit the load, site conditions and operator skill.

HPP series: Rider transporters with a spring drive unit and unsprung castors. The load on the drive unit is governed by the spring, which can be changed. Rider transporters are unsuitable for exceptional ramps or poor floors. Unsprung castors prevent side-sway when turning. On reasonable floors a 2-speed travel of 10kph is possible. Very heavy-duty design with the latest European technology in mind.
